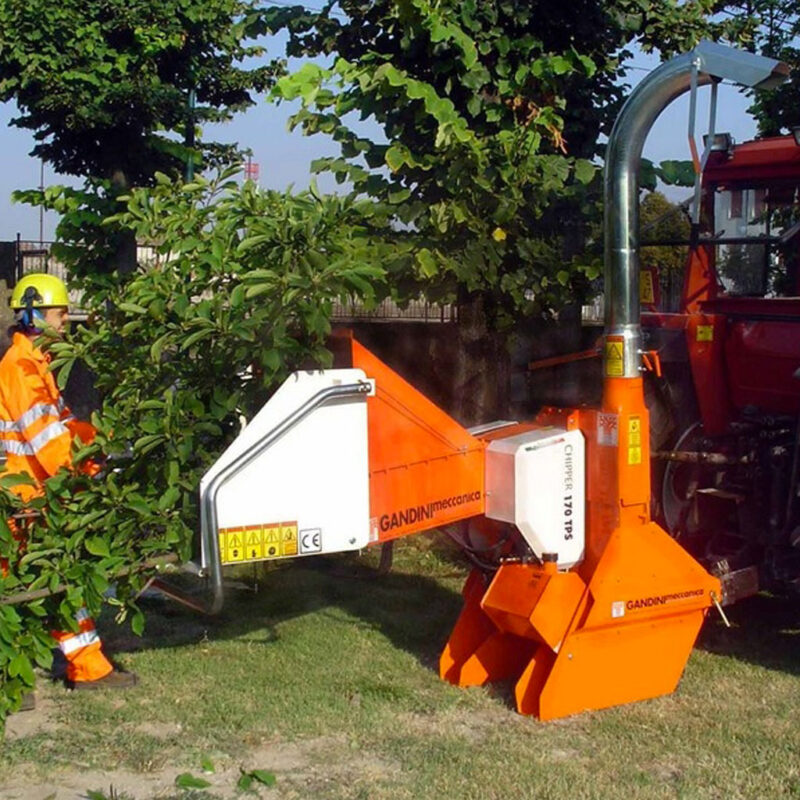

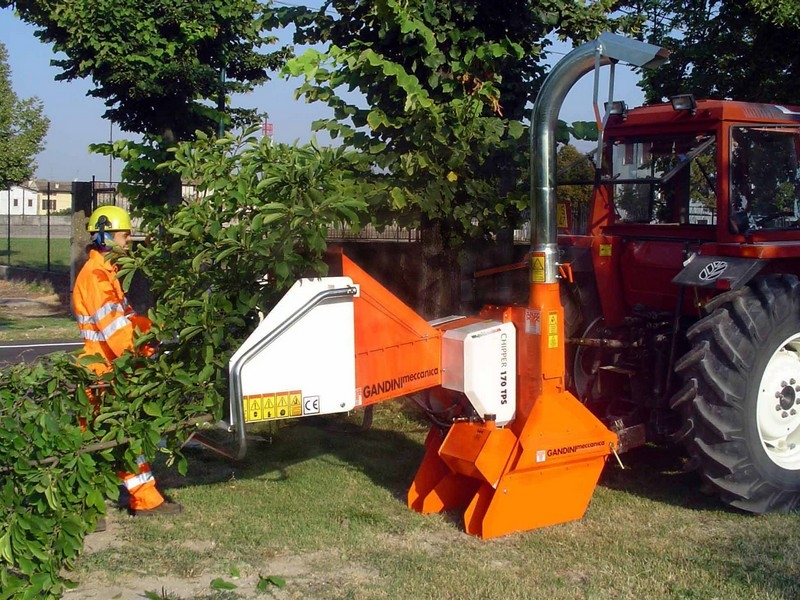

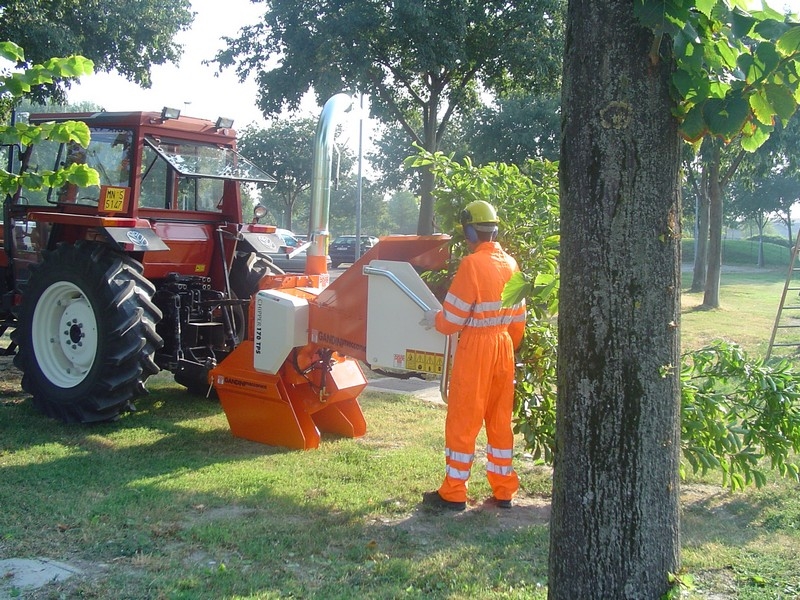

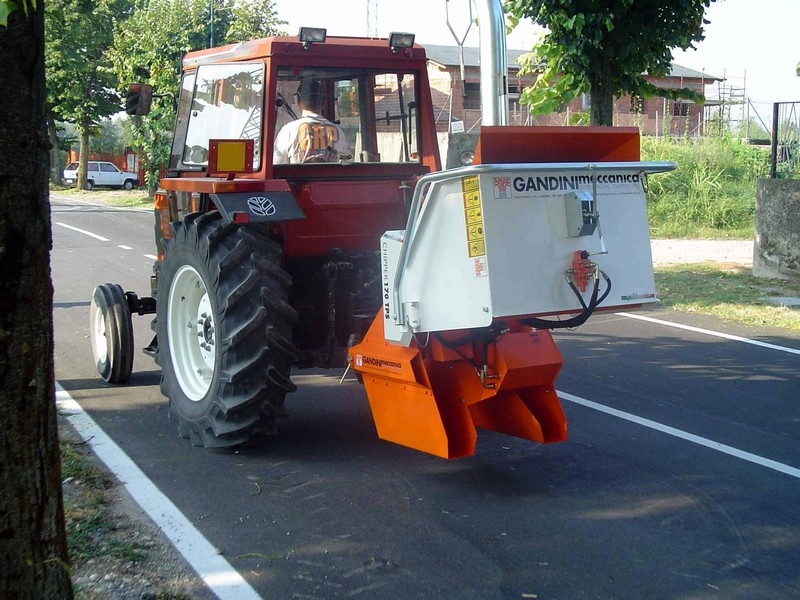

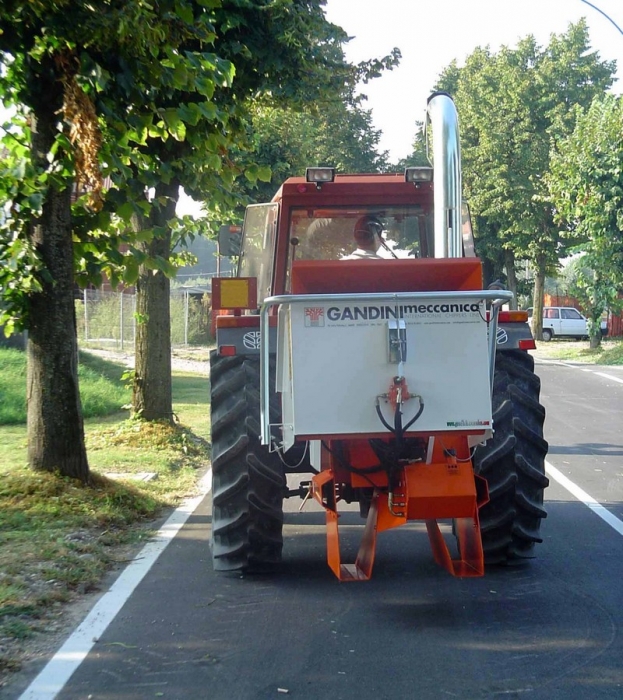

This type of chipper has been developed to solve the shredding problems in medium-size plants. The TPS version of the CHIPPER 170 line is arranged to be fitted to the 3rd point linkage of any type of tractor and powered by the PTO shaft.
All the machines are equipped with a quick system for blades removal and replacement which reduces maintenance time and eventual assembly mistakes.

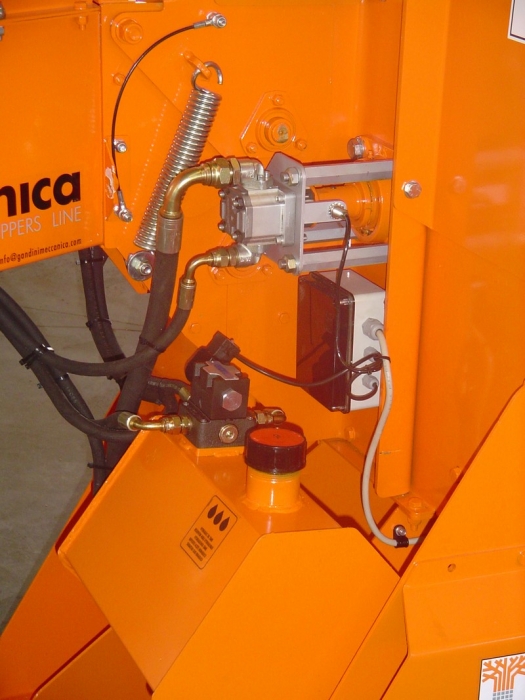

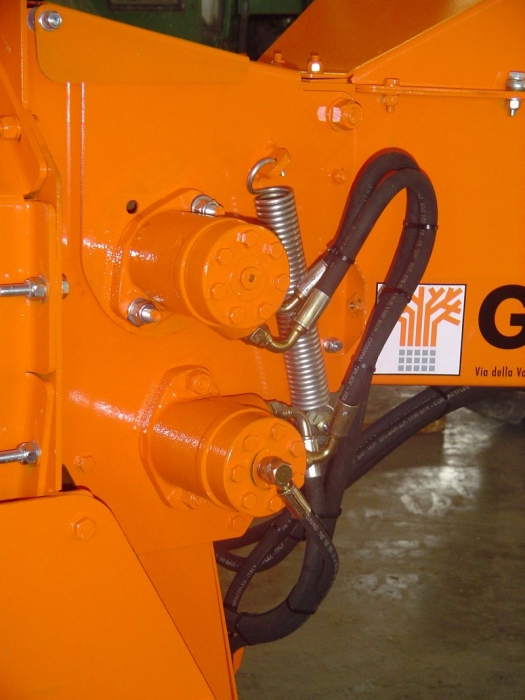

The hydraulic system of the wood chipper machines has been designed in the minimum details and manufactured with high quality components, oversized pipes and with a special electro-valves group, all this to assure the maximum reliability and long life during the time.
Download
General catalogue
Information
Request more information about this machine.
Share
| 170 TPS | 170 MTS | |
| TRACTOR POWER | 35-60 cv | |
| ENGINE POWER | 35 cv | |
| CYLINDERS Q.TY | 3 | |
| BLADES Q.TY | 3 | 3 |
| FLYWHEEL DISC DIAM. | 680 mm | 680 mm |
| HOODS SETS | optional | |
| CHIPS LENGTH | 10-13 mm | 10-13 mm |
| 360° EXAUSTING PIPE | standard | standard |
| NOSTRESS DEVICE | standard | standard |
| HOURS-METER | optional | optional |
| LIGHTS SYSTEM | optional | optional |
| PTO SHAFT | standard | |
| FLYWHEEL DISC THICK | 25 mm | 25 mm |
| PRODUZIONE ORARIA | 4000 kg | 4000 kg |
| HOURLY OUTPUT | 110-130 mm | 110-130 mm |
| FORWARDING SIZES | 1850x1250x1500 mm | 2700x1200x1500 mm |
| MACHINE WEIGHT | 550 kg | 750 kg |
Chipper shredder for your problem in medium-sized shipyards.
System for the rapid assembly and disassembly blades.
High reliability and durability.
Maximum diameter of 150-170 mm wood.
